1.2GHz T-Bird CPU / 256MB PC133 RAM / PcChips M817LMR 266MHz FSB w/DDR MOBO / 300W ATX Case /  3D Audio / 56K Modem / 10/100 LAN

What's included:

CPU:

AMD Athlon K7 Thunderbird - 1.2GHz, 266MHz, Socket A (Socket 462) w/ Sink & Fan



RAM:

256MB of PC133 RAM

MOTHERBOARD:

  • ALiMAGiK 1 Chipset (M1647)

  • AC'97 SoundBlaster Compatible 3D Audio

  • SDRAM or DDR-RAM Support

  • ATA100 Support

  • AGP 1x/2x/4x

300 Watt ATX Case:

  • 3x 5.25" Bays

  • 2x 3.5" Bays

Sound:

  • AC'97 SoundBlaster Compatible 3D Audio

MODEM:

HSP 56K V.90 AMR

LAN:

10/100Mbps RJ-45 LAN

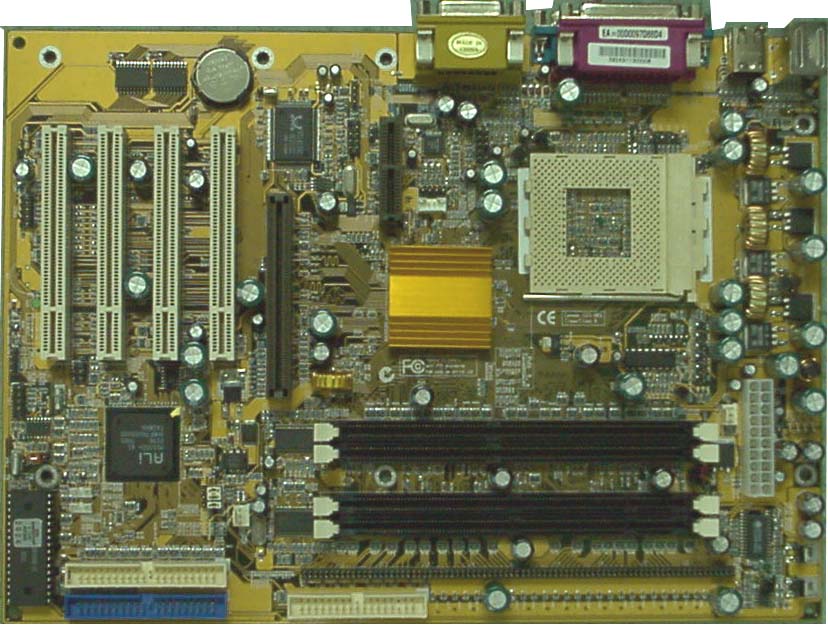

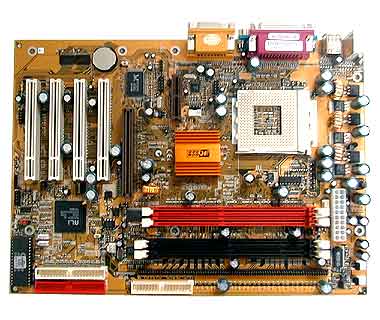

PcChips M817LMR Motherboard

click for larger image

Processors

  • Support AMD® Athlon/Duron Processors

  • Support 200MHz/266MHz FSB

Memory

  • Two - DIMM slots for 168-pin SDRAM memory modules (Maximum 2 x 512MB = 1GB)

  • Two - DIMM slots for 184-pin DDR memory modules (Maximum 2 x 512MB = 1GB)

  • Support SDRAM up to 133MHz memory bus

Expansion Slots

  • One - AMR slot

  • One -AGP 4x slot for AGP2.0 compliant interface

  • Four - 32 bit PCI slot

IDE Channels

  • Primary and Secondary PCI IDE Channels

  • Support PIO (Programmable Input/Output) modes

  • Support BUS Mastering and Ultra DMA 33/66/100

I/O Interface

  • Provides PC99 Color Connectors for easy peripheral device connections

  • One - EPP / ECP mode parallel port

  • One - 16550 high speed serial I/O port

  • Audio Ports (Line-in, Line -out, MIC-in and Game port)

  • Support 360K to 2.88MB, 3 Mode FDD or LS120\

  • Two - USB port (Optional USB module for additional two USB ports)

AC97

  • Compliant AC97 2.1 specification

  • Support 18 bit ADC (Analog Digital Converter) and DAC (Digital Analog Converter) as well as 18 bit stereo full duplex codec

LAN

  • 10BaseT/100BaseTX Ethernet LAN

  • LAN controller integrates Fast Ethernet MAC and PHY comopliant with IEEE802.3u 100BASE-TX, 10BASE-T and ANSI X3.263 TP-PMD standards

  • Compliant with ACPI 1.0 and the Network Device Power Management 1.0

BIOS

  • Support Plug N Play configuration of peripheral devices and expansion card

  • Built-in virus protection using Trend’s ChipAway Virus, provides boot process virus protection

Power Management & Hardware Monitor

  • ACPI and previous PMU support, suspend switch, keyboard power on/off

  • Support  Wake on Modem (WOM), Wake on LAN and Wake on Alarm

  • Built-in hardware monitoring for CPU & system temperatures, fan speeds and mainboard voltages

Software

  • Bundled Corel WordPerfect Suite 8; take advantage of leading-edge collaboration and business tools (optional).

  • Bundled 3Deep, to deliver the precise imagery and display accurate color in your monitor.

  • Bundled Gamut 2000 includes MP3 Encoder/Decoder, for professional audio applications.

  • Bundled Super Voice for Fax/Modem and Voice applications; MediaRing Talk for Internet Phone communication.

  • Provides Trend Micro's ChipAwayVirus and PC-Cillin 98(OEM) for Windows 95/98 and internet virus protection.

  • WinDVD 2000 Intervideo
  • All Drivers Included on Original CD
  • Software Included
  • Manual
  • Complete System is less then a year old
  • Bought new in May of 2001

See more specs on PcChips web page:

www.pcchips.com

http://203.161.230.38/product_img/socket_a/m817lmr.html

Asking $ 480.00 OBO



Contact:

Jeff

lawsonje@hotmail.com

Moncton, New Brunswick
